Explore Scientific ED 127 CF – FCD01 compared to FCD-100
A product test: two models in direct comparison. Von J.S. Schlimmer
1. Introduction
Figure 1: Explore Scientific ED 127 CF models under test
Since April 2016 I own the apochromatic one Refractor ED 127 CF, Model FCD01 by Explore Scientific and I use it for moon and planetary observation as well as for the photography of extended nebulas, open star clusters and galaxy clusters. In addition to the very good look, the possibility for photographic use with the help of a focal reducer, also the low weight of the telescope has influenced my purchase decision. Therefore, I could continue to use my old mount and invest the existing budget in optical accessories. The telescope is still transportable and thus suitable for mobile use outside the light-polluted cities.
Explore Scientific is listed as a Bresser brand. The technical support I approached initially for some questions was very friendly, accommodating and very helpful.
2. Description
The ED 127 CF has a three-lens lens. Between the lenses there is an air gap. The tube is made of carbon fiber and processed to high quality. The ED 127 CF has a three-lens objective. There is an air gap between the lenses. The tube is made of carbon fiber and processed to high quality. Thanks to its low weight of only 7 kg, it can still be carried by a GP-DX or comparable mount.
Since November 2016, the improved FCD-100 model is on the market, which is advertised with high color purity and a perfect optical design. What’s the difference between these two models? To test this, Bresser has kindly provided me with an ED 127 FCD-100.
At first glance, both models resemble each other like twins, as my older model also has the 2.5-inch Hexafoc extract. In addition to the stable construction, it can also be rotated as a whole. In astrophotography this offers the advantage of preserving the focal position, even if the camera needs to be realigned for another object. The 1:10 reduction allows an exact focus. A scale applied on the pullout facilitates the presetting (Figure 2). In the case of visual observation the zenith mirror can of course be adjusted independently of the focuser.
Figure 2: Camera, 0.7x Focal Reducer and Hexafoc Extract
Both models have an aperture of 127 mm and a focal length of 952 mm. In lens labeling, the new model differs only in the additionally printed model designation. Only by closer inspection you can see that the tube of the new model FCD-100 is 15mm shorter. This is a great advantage, because my intrafocal area is very short on my own model. Therefore, in my model, orthoscopic eyepieces (e.g. measuring eyepieces) cannot be used if the extension is provided with an extension sleeve. With my wide-angle eyepieces the extension sleeve always comes to commitment.
3. Objective lenses
For observation I prefer to use wide-angle eyepieces. For almost 2 years my Nagler range has also been supplemented by eyepieces in the 82° series by Explore Scientific. For the telescope comparison the Explore Scientific 2-inch eyepiece with 24 mm focal length, as well as two Explore Scientific 1 ¼ inch eyepieces, with 8.8 and 4.7 mm focal length were used.
4. Explore Scientific 0.7 focal reducer and corrector
of 64 mm (2.5 inches). To connect to Canon cameras, a special T2 adapter must be used. The adapter ring is only 1 mm thick and therefore made of steel. He has a free opening of 36.7 mm.
5. Visual tests
Figure 3: Explore Scientific 82 ° Series Eyepieces
In particular, moon and planets are suitable as test objects for the visual comparison, while in the deep sky range the Orion comes into question with its richness of detail. Open star clusters, on the other hand, offer a very good opportunity to assess the edge imaging at low magnifications.
For the tests, the objects should be as high as possible in the sky, where the influence of astronomical seeing is significantly lower. Because the planets only reached a height of 23° at the meridian passage at the time of the tests, they were out of the question for the tests. For better temperature adaptation, the telescopes were brought to the open air 1-2 hours before the tests.
At dusk on the 23rd of February
In 2018, Aldebaran was covered by the moon. The picture above shows the moon a few seconds before covering on the bright Sky. The small image inside shows the entire image field during the covering. The picture below shows the moon for one hour at the end of the Aldebaran covering. ES 127 FCD-100 and Focal Reducer, Canon 1100D
a) The moon
With the 2-inch 24 mm eyepieces, the moon fits comfortably in the field of vision. While the FCD01 showed a light, yellow color fringe around the bright edge of the crescent, the image of the successor model FCD-100 was without any color aberrations. The higher the magnification the more details revealed on the lunar surface. The sight became really fascinating at 200x magnification with the 4.7 mm eyepiece.
In the Apennine Mountains were already single, larger rock formations to recognize. In the south, on the edge of the Mare Nubium, the Long Wall was just visible, an approximately 100 km long embankment. The crater Thebit could be easily observed on one side of the long wall and Birt and the side crater Birt A on the other side. On closer inspection you could see further small craters such as e.g. Thebit D at the end of the long wall. Also Rima Birt, a groove that runs almost parallel to the Long Wall, but only as half long, was easy to see.
Below are some pictures of the Aldebaran covering from 23rd February 2018. The
beginning was still in the clear sky, so that Aldebaran was difficult to locate.
At the exit one hour later the sky was already dark.
b) Open star cluster: Pleiades and NGC 1647
For the observation of the Pleiades also the 2-inch 24 mm eyepieces was used. With this eyepiece, the Pleiades are a breathtaking sight, because they fit completely into the field of view. In both telescopes, the stars were as fine as needle points and point-shaped to the edge. Visually, no color errors were noticeable. It was such a perfect sight.
NGC 1647 is a very loose open star cluster nearby 97 Tau. Because it is very extensive, it is best seen at low magnification. Approximately 20 stars with a brightness of 8 mag can be captured well with the 2-inch 24-mm eyepiece. Again, the sight is fantastic, as the entire field of view is sharply displayed.
c) Stars and binary stars
AFigure 5: Intrafocal and extrafocal diffraction disks
What about the comparison at high magnifications? Inadequate color correction of refractors is shown by blue color fringes around bright stars. To test this, the choice fell on Bellatrix, the "warrior" in Orion. This star is 1.6 mag bright, bluish giant star of the spectral class B2. At moderate magnification with the 8.8 mm eyepiece (108x), neither the CD01 nor the successor FCD-100 showed any fringing. At high magnification with the 4.7 mm eyepiece (203x), diffraction rings around Bellatrix were clearly visible, but no fringing. However, at this magnification already the atmospheric dispersion was noticeable, as Bellatrix only reaches a height of 46 ° in the meridional passage. The atmospheric dispersion is shown by blue color in the upper area and red color in the lower area of the star. However, it is an atmospheric effect and not due to the telescope optics.
In the constellation Orion there are also numerous binary stars, which can be used to test the resolution. For example, 32 Ori (STF 728) could not be resolved at a distance of about 1.2 arcseconds. For 52 Ori (STF 795), which has a spacing of only 1.0 arcseconds, both components could be detected but not completely separated. The reason for this is in different contrast: the components of 32 Ori have a brightness difference of 1.3 magnitudes, while the components of 52 Ori are equally bright. The observation of Alnitak (STF 774), the eastern belt star of Orion was also interesting. With a distance of at least 4.7 arc seconds, this double star should be easy to separate, despite its brightness difference of 1.8 magnitudes. At 203x magnification Alnitak was also clearly to separate, however the B-component could only be seen at second glance in the diffraction rings. With the 8.8 mm eyepiece Alnitak was inseparable.
Of course, with this type of observation, astronomical seeing plays a crucial
role. Unfortunately, lunar observation was only possible with good astronomical
seeing. At all other tests the astronomical seeing was not very good. In
conclusion, the difference between the two models FCD01 and FCD-100 is hardly
noticeable in visual observations.
6. Photographic tests
a) Diffraction slices in the primary focus
To get a better overview of the color difference between the two models, the defocused diffraction discs were first used recorded in the primary focus at 952 mm focal length (Figure 5). For this a QHY 5L II-C color CMOS camera was used. The images were taken at a distance of -2.2, -1.1, 0, +1.1 and + 2.2 mm from the focus. The light source was Bellatrix.
Overall, my model FCD01 showed slightly more color differences between the intra- and extra-focal diffraction slices. In the intrafocal area it appears slightly greenish, while in the extrafocal area it shines reddish. The successor model FCD-100 shows no color differences between the intra- and extra-focal diffraction disks.
Figure 6: Orion Nebula 16 x 30 seconds, 800 ASA, ED127 CF FCD-100, 0.7 x Focal Reducer
a) Astrophotography with the Explore Scientific 0.7x focal reducer
Figure 7: Bellatrix and Betelgeuse, 5x30 seconds, 800 ASA
Figure 8: Complete picture of Betelgeuse, the inlays show the Star illustrations in the corners on the lower left and upper right
The photos in this review were taken with a modified Canon EOS 1100D. It can also be used for the absorption of hydrogen regions due to the lack of red filter. For the recordings, the camera was connected directly to a laptop via a USB cable and operated exclusively via the Canon "long-distance shot" menu. The focus was set on the live image in 10x zoom mode. Exposure time and sensitivity were also controlled via the laptop. The pictures could be viewed directly after the picture was taken on the screen. The pictures were taken with an exposure time of 30 seconds at 800 ASA. To reduce noise, flat and dark images were also created.
With my FCD01 model, the sharpness can be easily adjusted by the color of the diffraction disk. As soon as the color becomes minimal, or changes from a slight green cast to reddish, the perfect focus is found. This method always worked well and led to quick results. In which Successor model FCD-100, this method could not be applied due to the color purity. Therefore it took some practice to find the right focus. A self-made focusing aid has proven to be helpful. The focusing aid consisted of a ring that was placed on the dew cap. Attached to the ring was a thin ridge that ran through the center, creating a one-dimensional diffraction pattern in the image. Based on the diffraction image was the adjustment of sharpness.
The focusing aid was removed again for photography and bright stars in Orion were once again chosen as test objects. Figure 7 shows Bellatrix (spectral type B2) and Betelgeuse (spectral type M2) taken with the FCD01 and the FCD-100. Exposing time was 5 × 30 seconds and corresponding flat pictures were taken. The different colors are shown very nice in both models. Due to the red sensitivity of the camera, a correspondingly large halo appears around Betelgeuse.
Für For deep sky shots of extended objects not only the color but also the marginal image is of interest. Figure 8 therefore shows the complete picture of Betelgeuse taken with the FCD-100. The inlays show the star pictures in two opposite corners. The 0.7x Focal Reducer levels the image over the entire APS-C format of the camera. Very red stars in the border area are no longer 100% displayed due to dispersion phenomena. The strength of this effect depends on the spectral type of the star and of course on the red sensitivity of the camera and can be observed only at full image resolution (here 4273 pixels x 2848 pixels).
On the basis of the flat images, the vignetting of the two telescopes could also be determined very easily. The vignetting is shown by the edge darkening of the image field. In both models, the brightness drops to around 77% of the center brightness in the outermost corners. This corresponds to about half an aperture.
Figure 6 shows another shot of the Orion Nebula taken with the FCD-100. At the time of shooting, the sky was already lit by the half moon. The colors of the stars are rendered beautifully. There was no color correction during the image process, only the tonal values have been changed. In the predecessor model FCD01, the stars appear on deep sky shots usually with a slight green tint, which is easy to correct in subsequent image editing.
7. Conclusion
In all tests, the FCD-100 has shown no color errors, while the previous model FCD01 still has low color errors. With the improved look of the FCD-100, Explore Scientific / Bresser has reached the limits of color purity in imaging. Bei der Fotografie ist es beim FCD-100 schwieriger den exakten Fokus zu finden wie beim Vorgängermodell FCD01. Eine Fokussierhilfe und etwas Übung verhelfen aber auch hier zum gewünschten Ergebnis.
In photography, the FCD-100 is harder to find the exact focus like the previous model FCD01. A focus aid and a little bit of practice help to achieve the desired result.
The border image on both models is in conjunction with the Explore Scientific 0.7 x Focal Reducer APS-C format punctiform.
The image field illumination is very uniform and shows only slight vignetting.
The 2.5-inch Hexafoc extract is built mechanically very stable and can be rotated as a whole. This allows a camera to be arbitrarily aligned with the focus position almost preserved.
Due to the 15 mm shorter tube on the FCD-100 compared to the FCD01, the intrafocal area of the hexafoc is significantly larger. This also means that orthoscopic Eyepieces (for example, measuring eyepieces) can be used without removing the extension sleeve.
Overall, the Explore Scientific 127 FCD-100 is a fantastic 5-inch telescope that
impresses visually and photographically. In addition, it is transportable with a
weight of just under 7 kg and is also carried by a GP-DX or comparable mount.
With BRESSER, you can enjoy a smooth introduction to the vast world of astronomy. Our detailed information ("Telescope Guide") provides valuable tips for beginners— but even experienced astronomers can use the information we provide (e.g., tables for the geographical latitude of all major world cities) as a reference.
Here is the table of contents of the comprehensive BRESSER Telescope Guide:
With BRESSER, you can enjoy a smooth introduction to the vast world of astronomy. Our detailed information ("Telescope Guide") provides valuable tips for beginners—but even experienced astronomers can use the information we provide (e.g., tables for the geographical latitude of all major world cities) as a reference.
Here is the table of contents of the comprehensive BRESSER Telescope Guide:

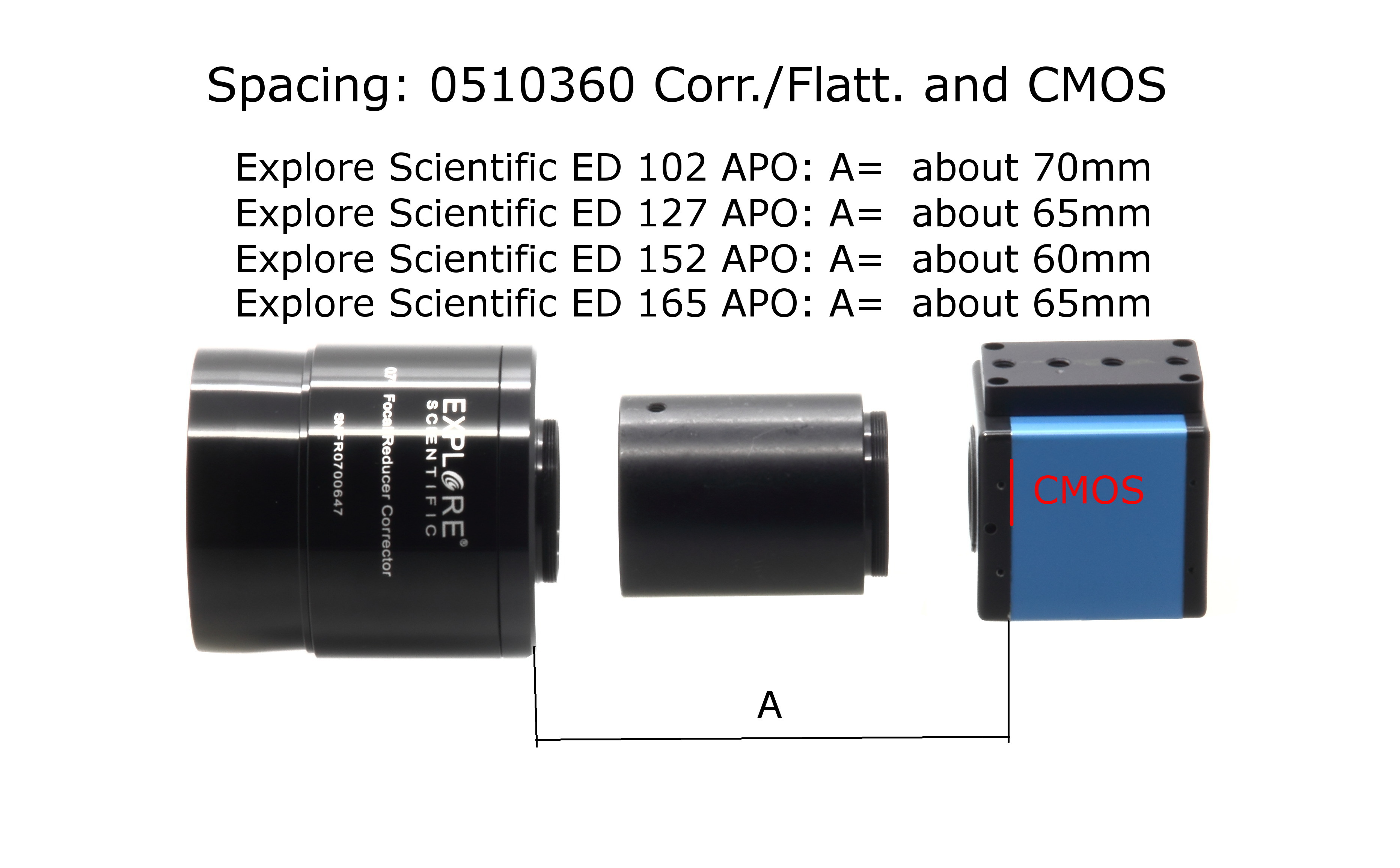

Product information "EXPLORE SCIENTIFIC 3" 0.7x Reducer/corrector"
